Grating
-

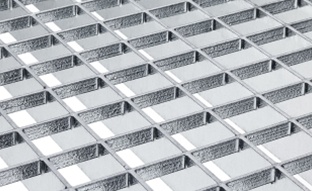

Grating - Forge Weld -

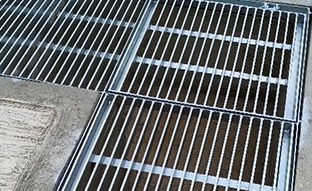

Grating - Drain Cover -

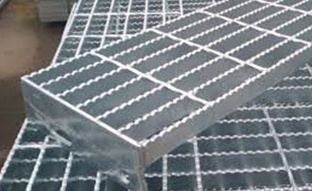

Grating - Stair Tread -

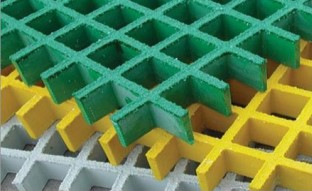

Pultruded and MoldedFibre Reinforced Plastic (FRP)
Steel Types
Mild Steel
Stainless Steel
Design Type

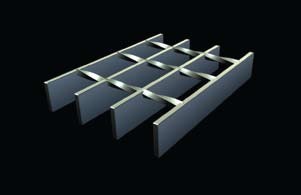

Plain

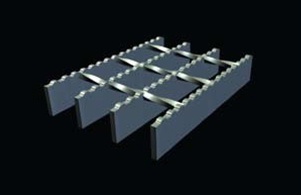

Serrated
Treatment
Untreated / black
Hot dip galvanized

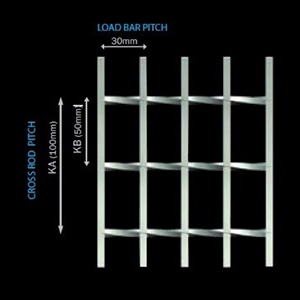

Series Type
Series 1 / LP30 – 30 mm

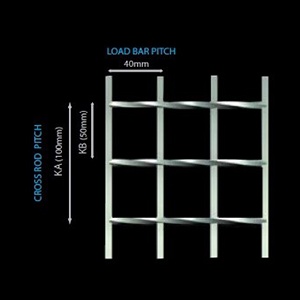

Series 2 / LP40 – 40 mm

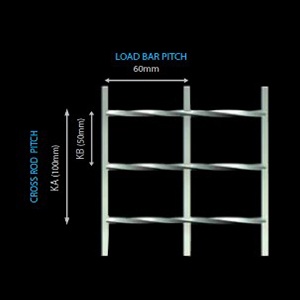

Series 3 / LP60 – 60 mm
Specification

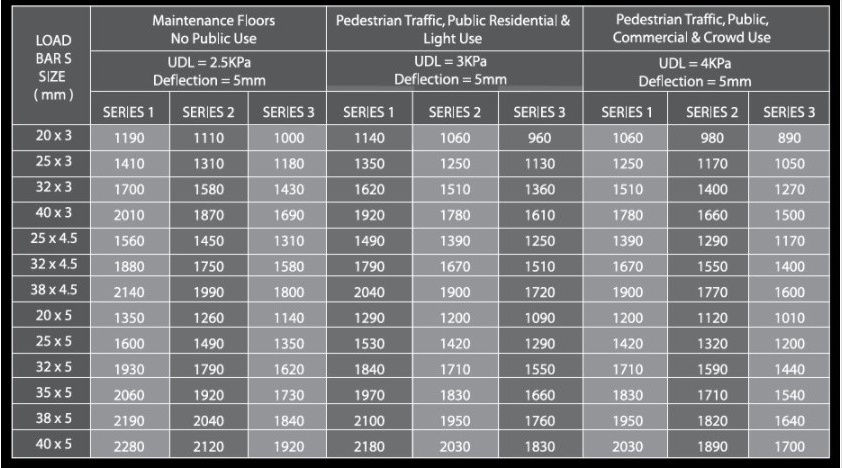

LIGHT &MEDIUM DUTY
Maximum recommended spans in millimeter

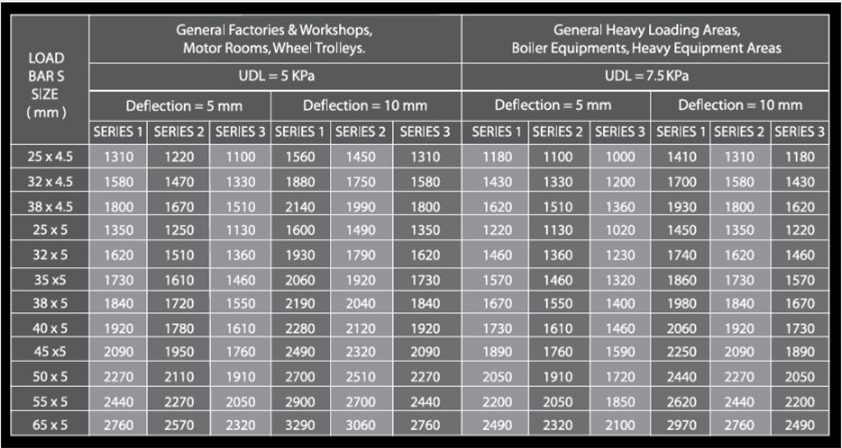

HEAVY DUTY
Maximum recommended spans in millimeter
Drain Cover Type

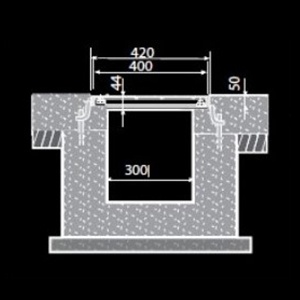

Fixed Bolt Type
This model will prevent noise when vehicles pass through. It also provides security and can be dismantled easily without proper tools.

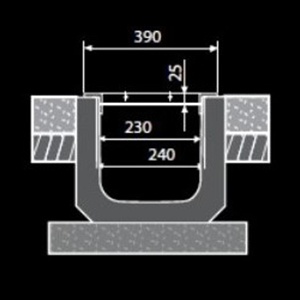

U-Type
This model is more suitable for U – Shape concrete Drain. Commonly used for general purposes.

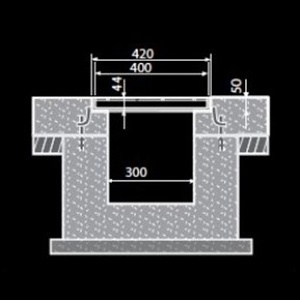

Normal Type
This model is used for Cross Drain Type and Side Drain Type.

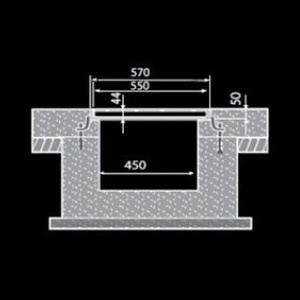

Sump Type
This model is suitable for drainage manhole cover. There are 2 types available namely fix type and removable type.
Tread Type

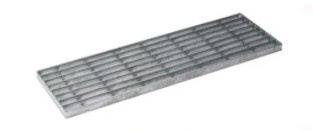

Tread Type T1
Welded Fixing, Banded Ends, No Nosing

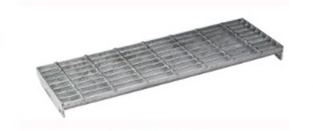

Tread Type T2
Botted Fixing, Holed End Plates, No Nosing

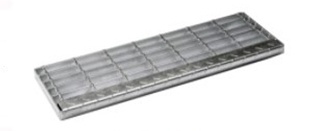

Tread Type T3
Welded Fixing, Banded Ends, Floor Plate Nosing

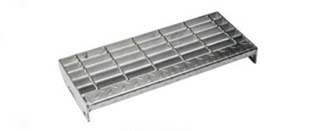

Tread Type T4
Bolted Fixing, Holed End Plates, Floor Plate Nosing

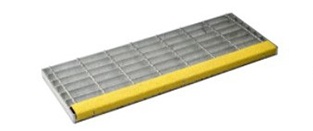

Tread Type T5
Welded Fixing, Banded Ends, Abrasive Nosing

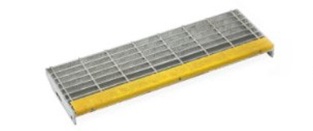

Tread Type T6
Bolted Fixing, Holed End Plates, Abrasive Nosing
FRP Type
Vinylester (VE)
Developed for reliable performance in the harshest chemical environment, the most chemically-resistance to a wide range of highly corrosive environments, ranging from caustic to strong acidic.
Thickness Available:
25mm / 38mm / 50mm
Isophathalic Resin (ISO)
An economy polyester grating, it outperforms a number of competitive fiberglass products and meets the requirements of corrosion resistance found in all industrial and offshore applications.
Thickness Available:
25mm / 38mm / 50mm
Isophathalic Fire Retardant (IFR)
Designed for industrial and chemical processing applications where fire retardancy is required, this isophathatic polyester resin formulation offers a flame spread and smoke rating conform to ASTM E-84 Class A and BS 476 Part 7 Class 1.
Thickness Available:
25mm / 38mm / 50mm
FRP Type
Vinylester (VE)
Developed for reliable performance in the harshest chemical environment, the most chemically-resistance to a wide range of highly corrosive environments, ranging from caustic to strong acidic.
Thickness Available:
25mm / 38mm / 50mm
Isophathalic Resin (ISO)
An economy polyester grating, it outperforms a number of competitive fiberglass products and meets the requirements of corrosion resistance found in all industrial and offshore applications.
Thickness Available:
25mm / 38mm / 50mm
Isophathalic Fire Retardant (IFR)
Designed for industrial and chemical processing applications where fire retardancy is required, this isophathatic polyester resin formulation offers a flame spread and smoke rating conform to ASTM E-84 Class A and BS 476 Part 7 Class 1.
Thickness Available:
25mm / 38mm / 50mm
Benefits
- Corrosion Resistant
- Lightweight and Durable
- Cost Effective
- Strength to Weight Ratio
- Impact Resistant and Elastic
- Weather Resistant
- Non-Conductive
- Fire Retardant
- Anti-Slip Surface
-
Grating - Forge Weld -
Grating - Drain Cover -
Grating - Stair Tread -
Pultruded and MoldedFibre Reinforced Plastic (FRP)
Steel Types
Mild Steel
Stainless Steel
Design Type
Plain
Serrated
Treatment
Untreated / black
Hot dip galvanized
Series Type
Series 1 / LP30 – 30 mm
Series 2 / LP40 – 40 mm
Series 3 / LP60 – 60 mm
Specification
LIGHT &MEDIUM DUTY
Maximum recommended spans in millimeter
HEAVY DUTY
Maximum recommended spans in millimeter
Drain Cover Type
Fixed Bolt Type
This model will prevent noise when vehicles pass through. It also provides security and can be dismantled easily without proper tools.
U-Type
This model is more suitable for U – Shape concrete Drain. Commonly used for general purposes.
Normal Type
This model is used for Cross Drain Type and Side Drain Type.
Sump Type
This model is suitable for drainage manhole cover. There are 2 types available namely fix type and removable type.
Tread Type
Tread Type T1
Welded Fixing, Banded Ends, No Nosing
Tread Type T2
Botted Fixing, Holed End Plates, No Nosing
Tread Type T3
Welded Fixing, Banded Ends, Floor Plate Nosing
Tread Type T4
Bolted Fixing, Holed End Plates, Floor Plate Nosing
Tread Type T5
Welded Fixing, Banded Ends, Abrasive Nosing
Tread Type T6
Bolted Fixing, Holed End Plates, Abrasive Nosing
FRP Type
Vinylester (VE)
Developed for reliable performance in the harshest chemical environment, the most chemically-resistance to a wide range of highly corrosive environments, ranging from caustic to strong acidic.
Thickness Available:
25mm / 38mm / 50mm
Isophathalic Resin (ISO)
An economy polyester grating, it outperforms a number of competitive fiberglass products and meets the requirements of corrosion resistance found in all industrial and offshore applications.
Thickness Available:
25mm / 38mm / 50mm
Isophathalic Fire Retardant (IFR)
Designed for industrial and chemical processing applications where fire retardancy is required, this isophathatic polyester resin formulation offers a flame spread and smoke rating conform to ASTM E-84 Class A and BS 476 Part 7 Class 1.
Thickness Available:
25mm / 38mm / 50mm
FRP Type
Vinylester (VE)
Developed for reliable performance in the harshest chemical environment, the most chemically-resistance to a wide range of highly corrosive environments, ranging from caustic to strong acidic.
Thickness Available:
25mm / 38mm / 50mm
Isophathalic Resin (ISO)
An economy polyester grating, it outperforms a number of competitive fiberglass products and meets the requirements of corrosion resistance found in all industrial and offshore applications.
Thickness Available:
25mm / 38mm / 50mm
Isophathalic Fire Retardant (IFR)
Designed for industrial and chemical processing applications where fire retardancy is required, this isophathatic polyester resin formulation offers a flame spread and smoke rating conform to ASTM E-84 Class A and BS 476 Part 7 Class 1.
Thickness Available:
25mm / 38mm / 50mm
Benefits
- Corrosion Resistant
- Lightweight and Durable
- Cost Effective
- Strength to Weight Ratio
- Impact Resistant and Elastic
- Weather Resistant
- Non-Conductive
- Fire Retardant
- Anti-Slip Surface
-
Grating -Forge Weld -
Grating -Drain Cover -
Grating -Stair Tread -
Pultruded and MoldedFibre Reinforced Plastic (FRP)
Steel Types
Mild Steel
Stainless Steel
Design Type
Plain
Serrated
Treatment
Untreated / black
Hot dip galvanized
Series Type
Series 1 / LP30 – 30 mm
Series 2 / LP40 – 40 mm
Series 3 / LP60 – 60 mm
Specification
LIGHT &MEDIUM DUTY
Maximum recommended spans in millimeter
HEAVY DUTY
Maximum recommended spans in millimeter
Drain Cover Type
Fixed Bolt Type
This model will prevent noise when vehicles pass through. It also provides security and can be dismantled easily without proper tools.
U-Type
This model is more suitable for U – Shape concrete Drain. Commonly used for general purposes.
Normal Type
This model is used for Cross Drain Type and Side Drain Type.
Sump Type
This model is suitable for drainage manhole cover. There are 2 types available namely fix type and removable type.
Tread Type
Tread Type T1
Welded Fixing, Banded Ends, No Nosing
Tread Type T2
Botted Fixing, Holed End Plates, No Nosing
Tread Type T3
Welded Fixing, Banded Ends, Floor Plate Nosing
Tread Type T4
Bolted Fixing, Holed End Plates, Floor Plate Nosing
Tread Type T5
Welded Fixing, Banded Ends, Abrasive Nosing
Tread Type T6
Bolted Fixing, Holed End Plates, Abrasive Nosing
FRP Type
Vinylester (VE)
Developed for reliable performance in the harshest chemical environment, the most chemically-resistance to a wide range of highly corrosive environments, ranging from caustic to strong acidic.
Thickness Available:
25mm / 38mm / 50mm
Isophathalic Resin (ISO)
An economy polyester grating, it outperforms a number of competitive fiberglass products and meets the requirements of corrosion resistance found in all industrial and offshore applications.
Thickness Available:
25mm / 38mm / 50mm
Isophathalic Fire Retardant (IFR)
Designed for industrial and chemical processing applications where fire retardancy is required, this isophathatic polyester resin formulation offers a flame spread and smoke rating conform to ASTM E-84 Class A and BS 476 Part 7 Class 1.
Thickness Available:
25mm / 38mm / 50mm
FRP Type
Vinylester (VE)
Developed for reliable performance in the harshest chemical environment, the most chemically-resistance to a wide range of highly corrosive environments, ranging from caustic to strong acidic.
Thickness Available:
25mm / 38mm / 50mm
Isophathalic Resin (ISO)
An economy polyester grating, it outperforms a number of competitive fiberglass products and meets the requirements of corrosion resistance found in all industrial and offshore applications.
Thickness Available:
25mm / 38mm / 50mm
Isophathalic Fire Retardant (IFR)
Designed for industrial and chemical processing applications where fire retardancy is required, this isophathatic polyester resin formulation offers a flame spread and smoke rating conform to ASTM E-84 Class A and BS 476 Part 7 Class 1.
Thickness Available:
25mm / 38mm / 50mm
Benefits
- Corrosion Resistant
- Lightweight and Durable
- Cost Effective
- Strength to Weight Ratio
- Impact Resistant and Elastic
- Weather Resistant
- Non-Conductive
- Fire Retardant
- Anti-Slip Surface
ML Innovation Sdn Bhd has in excess of 30 years in experience as a fabricator and manufacturer for steel, stainless steel products and allied products. Today our core business specializes in design, fabrication, supply and install of anti climb fence and perimeter security fence. ML Innovation is one of the market leader and largest anti climb fencing manufacturer in Malaysia. ML Innovation sales office operates in Kuchai Entrepreneurs Park, Selangor and has its own factory and warehouse in Subang Jaya Industrial Park, Malaysia.
